| تصویر | مدل | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Instant 15-1.5 | 15 | / | / | 1.5 | 230 | 50/60 | 5 | 80 | G1/2 |
 |
Classic E 32-6 | 32 | 2 | 3 | 6 | 230 | 50/60 | 45 | 180 | G2 |
 |

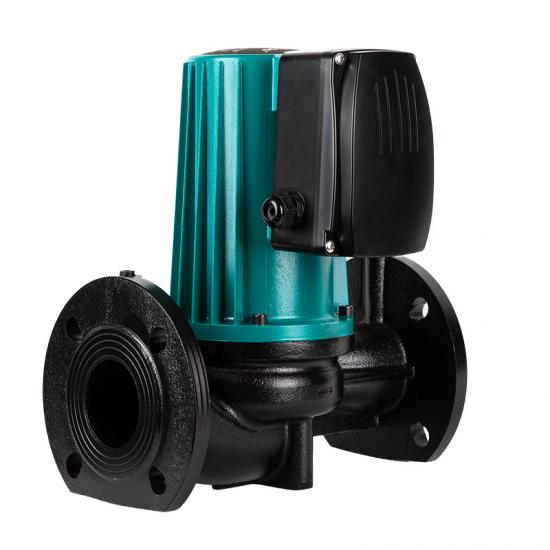

Basic 40-16F Pro | 40 | 8 | 13.5 | 18 | 220~240 | 50 | 1000 | 250 | DN40 |
 |

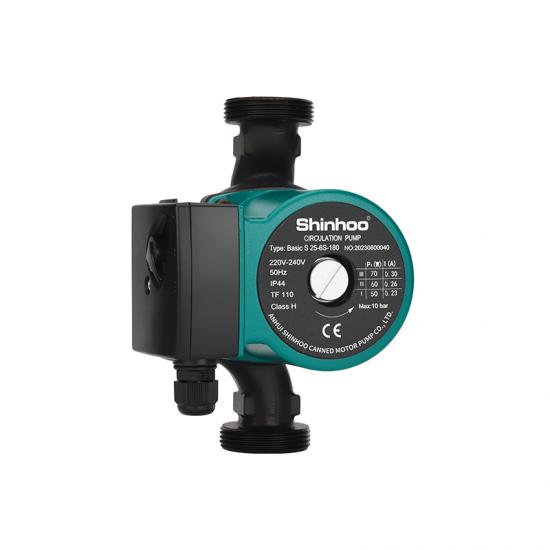

Basic S 25-4S | 25 | / | / | 4 | 230 | 50 | 50/40/30 | 130/180 | G1 1/2 |
 |
Basic S 25-7S | 25 | / | / | 6.5 | 230 | 50 | 100/80/60 | 130/180 | G1 1/2 |
 |

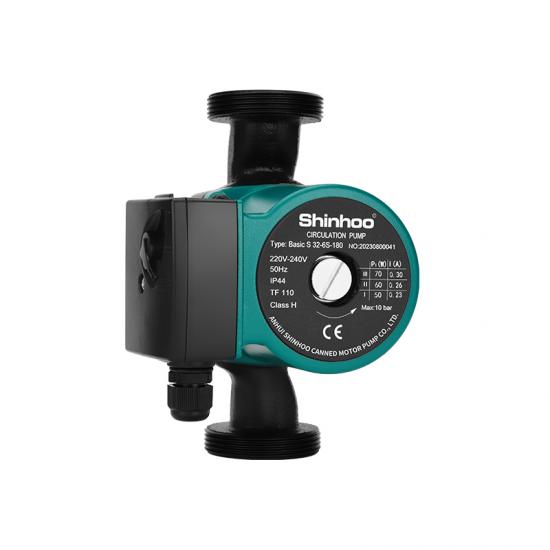

Basic S 32-7S | 32 | / | / | 6.5 | 230 | 50 | 100/80/60 | 180 | G2 |
 |
Basic S 32-8S | 32 | / | / | 8 | 230 | 50 | 180/175/130 | 180 | G2 |
 |
PH-253 | 50 | 11 | 4 | 7.5 | 220 | 50 | 400 | 290 | G2 |
