| تصویر | مدل | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Master D 20-5 | 20 | 1.7 | 3.2 | 5 | 220~240 | 50/60 | 33 | 130 | G1 |
 |
Master D 25-4 | 25 | 1.8 | 2 | 4 | 220~240 | 50/60 | 25 | 130/180 | G1 1/2 |
 |
Master D 25-5 | 25 | 2.2 | 4.7 | 7.5 | 220~240 | 50/60 | 33 | 130/180 | G1 1/2 |
 |

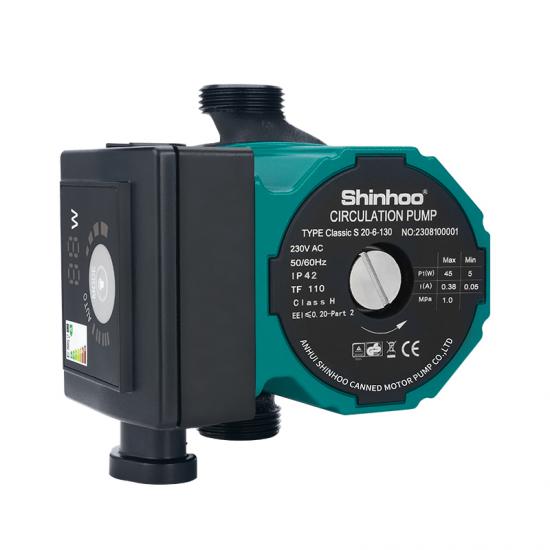

Classic S 20-6 | 20 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130 | G1 |
 |
Classic S 32-4 | 32 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 180 | G2 |
 |
Master H 20-7 | 20 | 2.2 | 3.6 | 7 | 220~240 | 50/60 | 52 | 130 | G 1 |
 |
GPA III Pro Z106 | 15 | 1 | 6 | 7.5 | 230 | 50/60 | 60 | / | / |
 |
Basic 40-12F Pro | 40 | 8 | 10 | 14 | 220~240 | 50 | 700 | 250 | DN40 |
