| تصویر | مدل | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

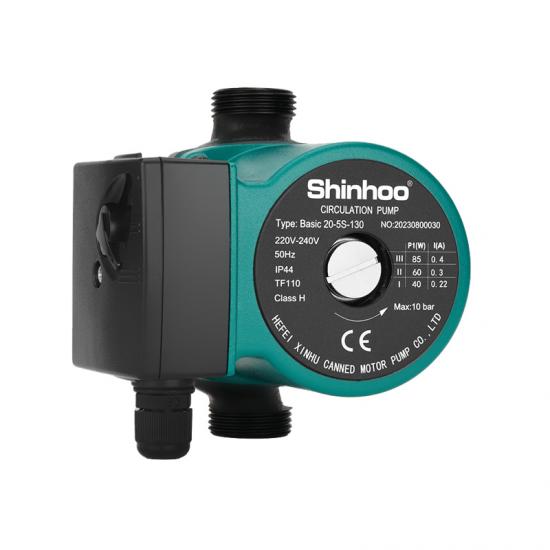

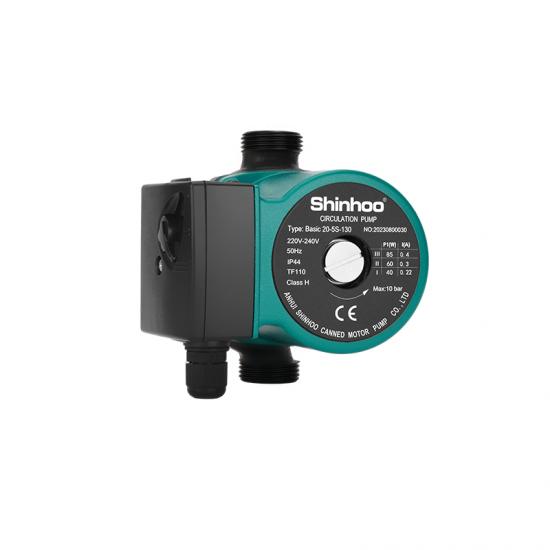

Basic 20-5S | 20 | 1.8 | 3.2 | 5 | 115/230 | 50/60 | 85/60/40 | 130/150 | G1 |
 |

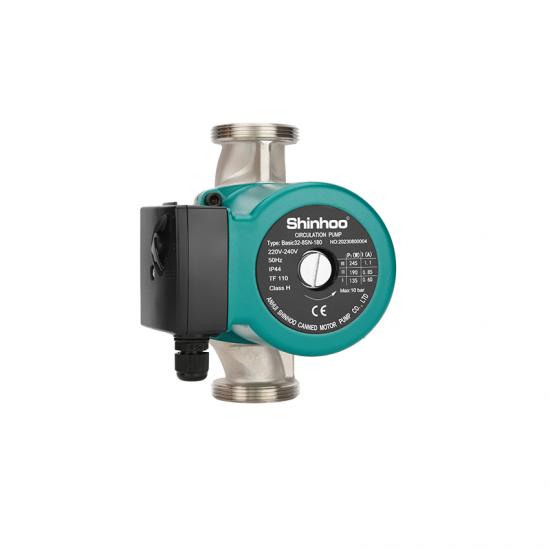

Basic 32-8SN | 32 | 4 | 5.5 | 8 | 115/230 | 50/60 | 245/190/135 | 180 | G2 |
 |

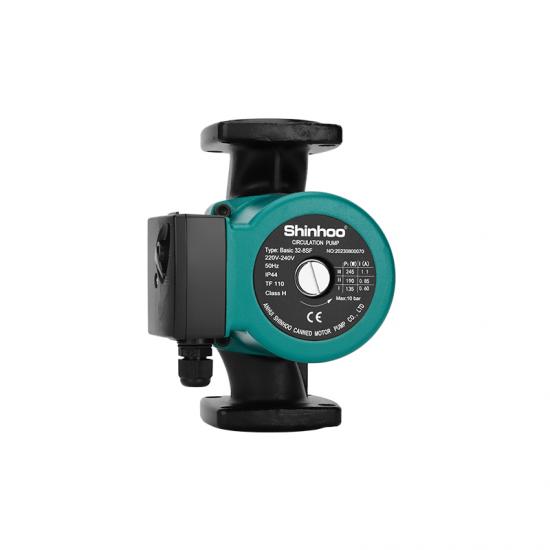

Basic 32-8SF | 32 | 4 | 5.5 | 8 | 115/230 | 50/60 | 245/190/135 | 180 | G2 |
 |

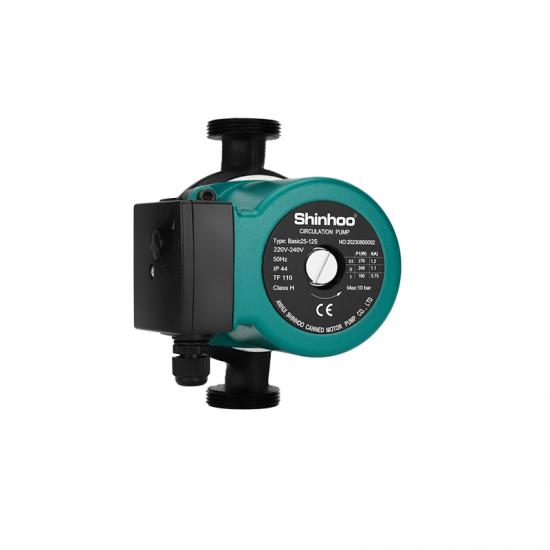

Basic 25-12S | 25 | 2 | 9.5 | 12 | 115/230 | 50/60 | 270/240/160 | 180 | G1 1/2 |
 |

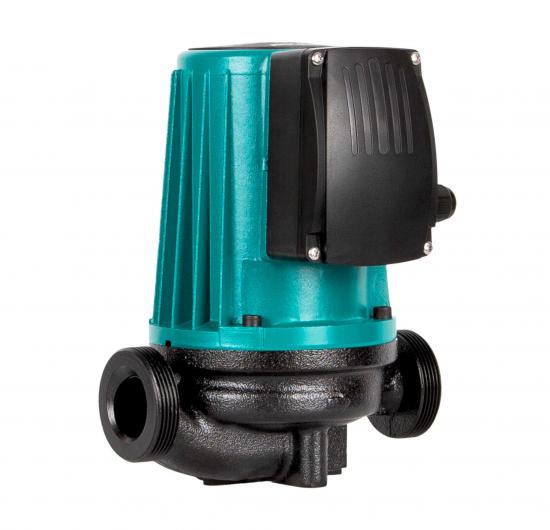

Basic 32-20 | 32 | 9 | 14 | 20 | 230 | 50/60 | 1000 | 230 | G2 |
 |
Basic 32-16S | 32 | 7 | 12.5 | 16 | 380 | 50 | 700 | 230 | G2 |
 |

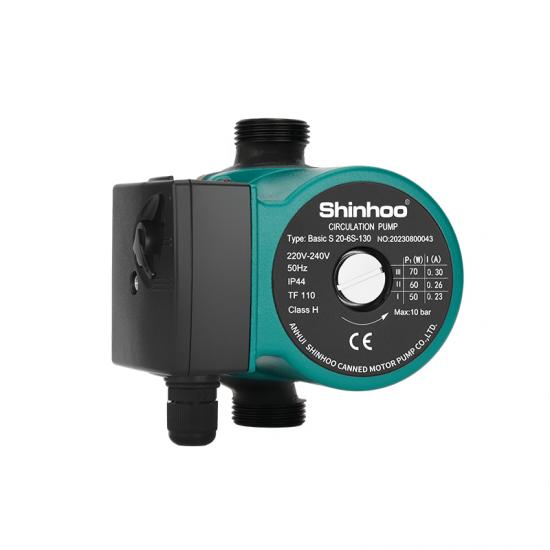

Basic S 20-5S | 20 | / | / | 5 | 230 | 50 | 65/50/40 | 130 | G1 |
 |

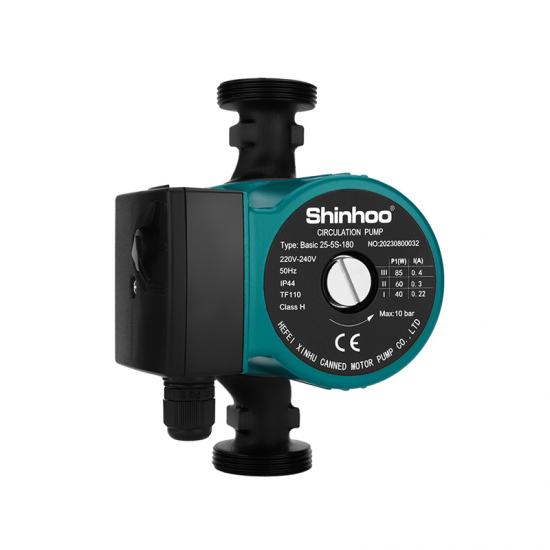

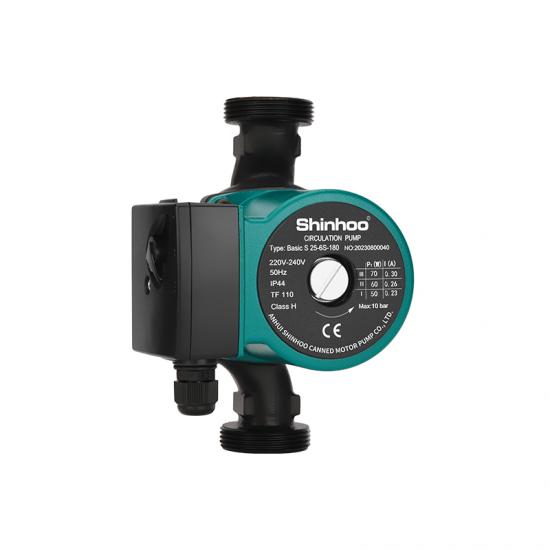

Basic S 25-5S | 25 | / | / | 5 | 230 | 50 | 65/50/40 | 130/180 | G1 1/2 |
