| تصویر | مدل | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Master D 32-4 | 32 | 1.8 | 2 | 4 | 220~240 | 50/60 | 25 | 180 | G2 |
 |

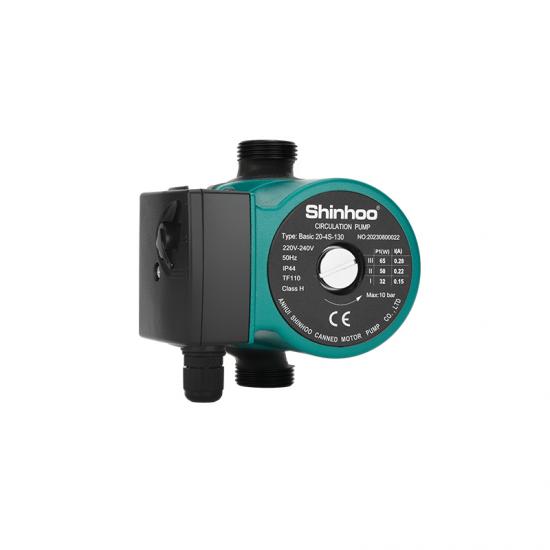

Basic 20-4S | 20 | 2 | 9.5 | 12 | 115/230 | 50/60 | 270/240/160 | 130/150 | G1 |
 |

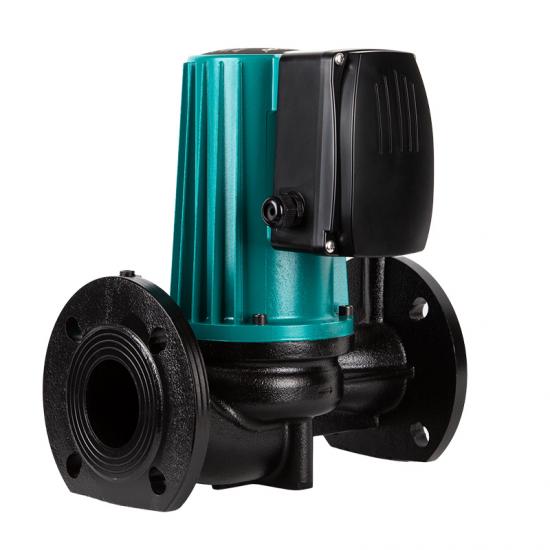

Basic 40-12F Pro | 40 | 8 | 10 | 14 | 220~240 | 50 | 700 | 250 | DN40 |
 |
Basic 40-16SF Pro | 40 | 8 | 15 | 18 | 230/380 | 50 | 1000 | 250 | DN40 |
 |

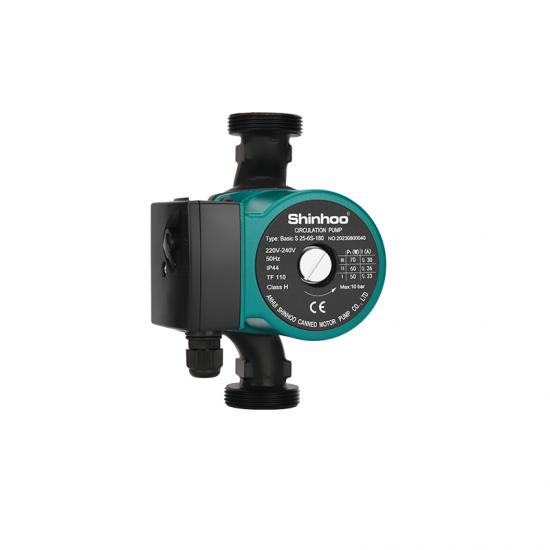

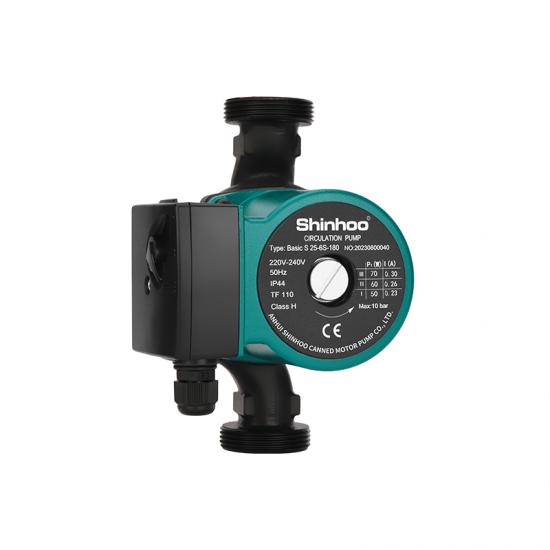

Basic S 25-6S | 25 | / | / | 6 | 230 | 50 | 70/60/50 | 130/180 | G1 1/2 |
 |

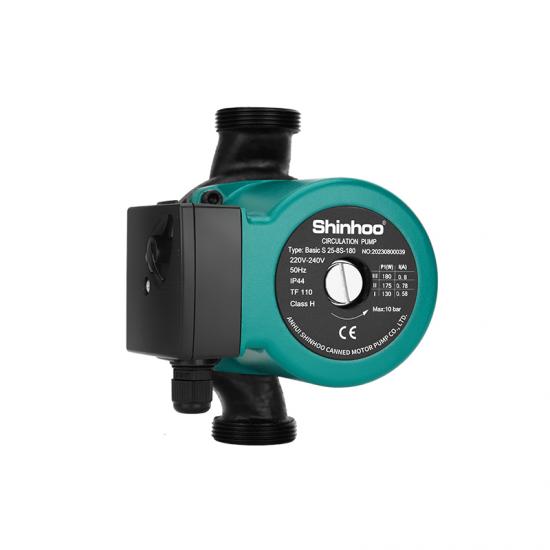

Basic S 25-8S | 25 | / | / | 8 | 230 | 50 | 180/175/130 | 180 | G1 1/2 |
 |
MHI-201 | 25/25 | 2 | 9.5 | 11 | 220 | 50 | 250 | 373 | Rp1-Rp1 |
