| تصویر | مدل | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

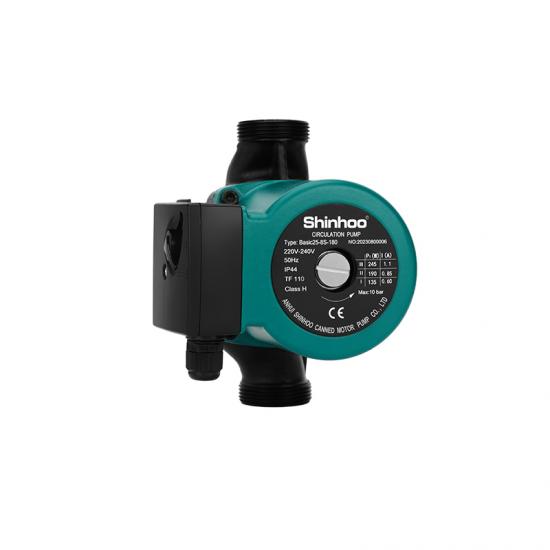

Basic 25-8SB | 25 | 3.2 | 6 | 8 | 115/230 | 50/60 | 245/190/135 | 180 | G1 1/2 |
 |
Basic 25-8S | 25 | 3.2 | 6 | 8 | 115/230 | 50/60 | 245/190/135 | 180 | G1 1/2 |
 |
Basic 25-16 | 25 | 7 | 12.5 | 16 | 230 | 50/60 | 700 | 230 | G1 1/2 |
 |
Basic S 32-5S | 32 | / | / | 5 | 230 | 50 | 65/50/40 | 180 | G2 |
 |
Basic S 32-7S | 32 | / | / | 6.5 | 230 | 50 | 100/80/60 | 180 | G2 |
 |
PH-403 | 50 | 8 | 16 | 20 | 220 | 50 | 1000 | 335 | G2 |
|
PH-403Q | 50 | 8 | 16 | 20 | 380 | 60 | 1000 | 335 | G2 |
 |
GPD 25-12F | 36 | 36 | 110 | 60 | 335 | 6 1/2 | Flanged |
